chocolate chips depositing machine

Short Description:

1.Chocolate chips depositing machine can make drop-shape or button shape chocolate.

2.Capacity range: 50-800kg per hour, Wider belt have bigger capacity

3.Products color: Single color and double color chocolate chips

4.Three types of machine: Pneumatic depositor, servo motor depositor and rolling forming chips machine

5.Provide engineers with installation services abroad

6.Lifetime warranty service, providing free accessories (non human damage within one year)




Product Detail

Product Tags

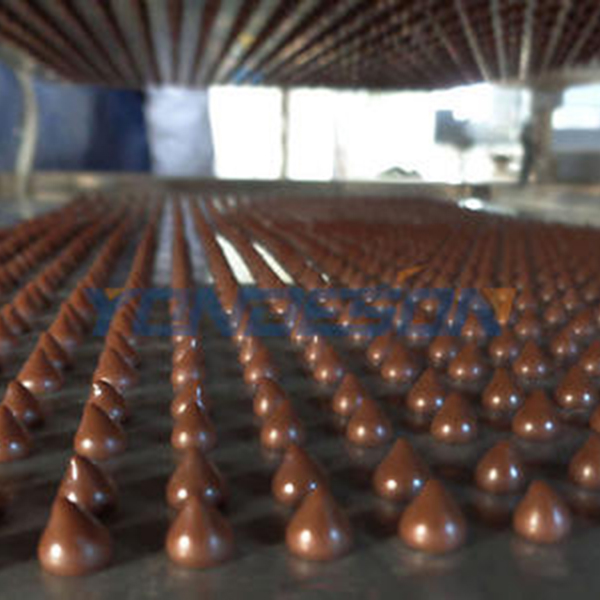

Chocolate Chip Depositing Machine / chocolate drops making machine is the dedicated equipment for the production of chocolate chips in small drop-shape or button shape. It can be used to deposit chocolate pastes through depositing head on the PU conveyor belt and delivery the products into the cooling tunnel for cooling down and automatic shedding.Chocolate Chip Making Machine has advantages of accurate amount set, easy operation and large production capacity.

The mold material of chocolate drops making machine is stainless steel or polycarbonate plastic, the polycarbonate plasticity has a very good strength and roughness, and the specific heat capacity and thermal conductivity of polycarbonate are similar to that of chocolate, and have better demoulding performance. In addition to the use of this type of mold plate, more use of porcelain plate, because it has excellent roughness and good demoulding characteristics.

There are two ways to product chocolate chips. One way is Pneumatic depositor or servo motor depositor, another way is rolling forming chips machine.

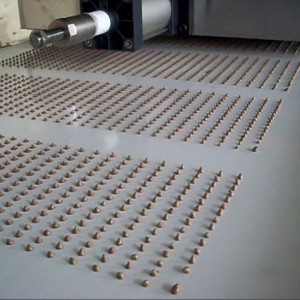

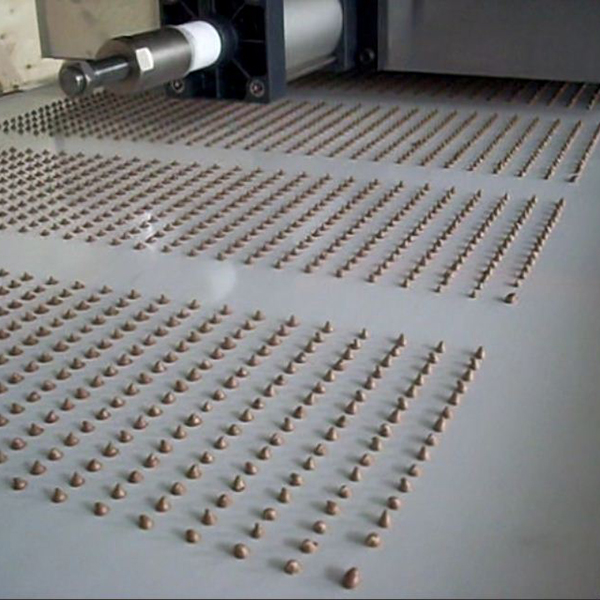

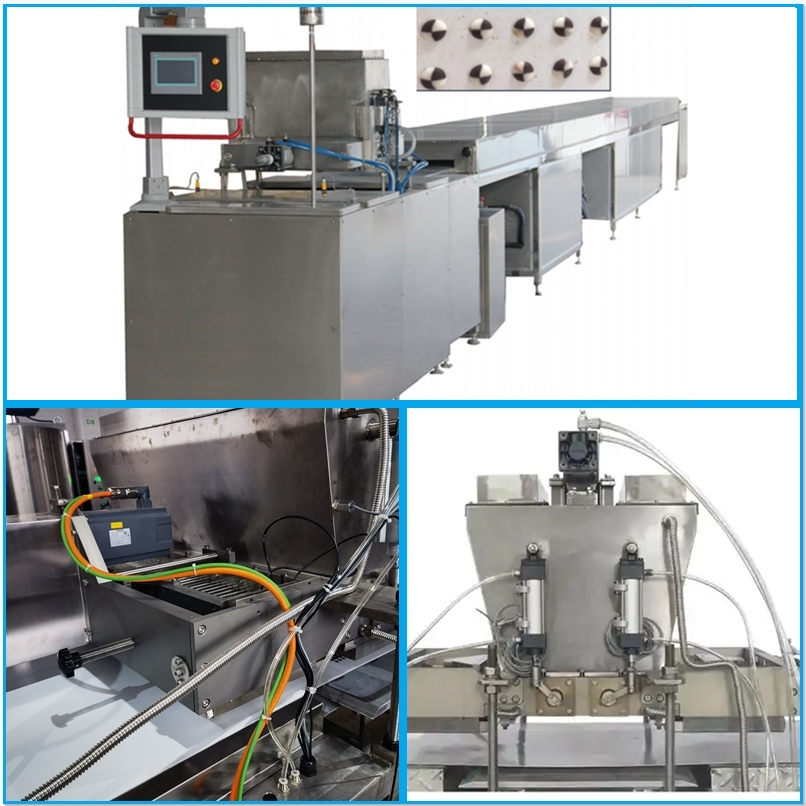

Chocolate drops depositing machine with pneumatic and servo motor

Accurate chips weight, CNC make distribution plate, beautiful tail nozzle, durable material after oxidation treatment

Can make single color and double color chocolate chips

Chocolate weight: 0.1 gram to 5gram

Can produce button shape and chips shape

SUS 304 , Food grade

Provide Siemens and Omron brand,Delta Brand,Siemens PLC and touch screen

Durable material after oxidation treatment, much stronger

Option for one machine double function: enrobing function and chocolate chips function

chocolate chips machine

Technical Data Of Chocolate Chips Depositor Machine:

Model



Technical Parameters

400

600

800

1000

1200

Conveyor Belt Width (mm)

400

600

800

1000

1200

Depositing Speed (times/min)

0-20

0-20

0-20

0-20

0-20

Single Drop Weight (g)

0.1-3

0.1-3

0.1-3

0.1-3

0.1-3

Cooling Tunnel Temperature(°C)

0-10

0-10

0-10

0-10

0-10

Machine Length (m)

10-30

10-30

10-30

10-30

10-30

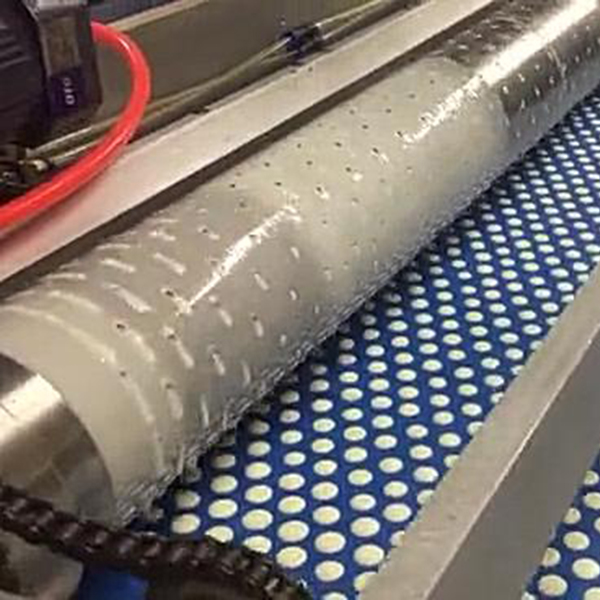

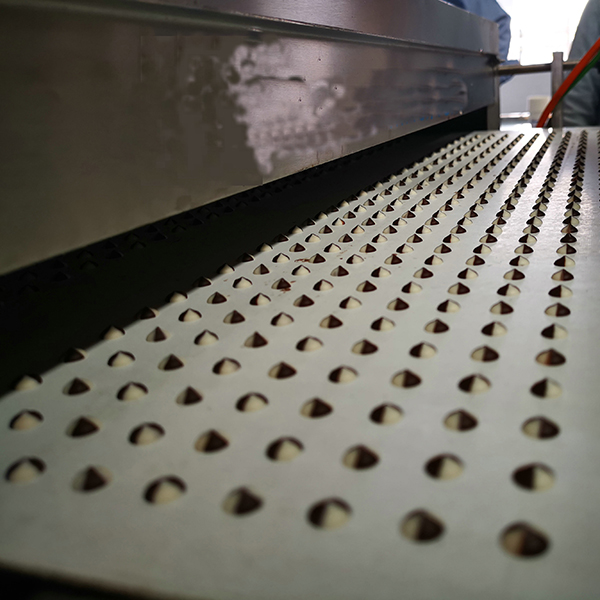

Chocolate chips making machine with rolling depositor

Chocolate Chip Depositor allows for the deposit of chocolate and chocolate compound drops and chips in a variety of shapes and weights, ranging from 0.1 to 5 grams. These types of products are ideal for industrial supply and subsequent melting, for decorating and for use in other products, especially cookies and ice creams.

The Chip Depositor Line includes a double-jacketed depositor head equipped with temperature control and a fixed-speed agitator. The movements of the head are coordinated with the belt used to collect the deposited products. The line also includes a belt-lifting system for deposit enabling diverse drop shapes. The drops are forwarded into cooling tunnel immediately after deposit.

Servo-controlled or Pneumatic-Driven depositor pistons enhanced measuring precision. Optimum tank    size and double-jacketed water circulation system for efficient control of deposit temperatures. Easy to remove and clean chocolate agitator and tank. Stainless steel used for operating parts and all components that come into contact with the product. User-friendly screen with specially designed PLC control all of the operating parameters.

This highly versatile machine can be easily adapted to meet new products’ needs, both in terms of design and of changes in shape or weight, simply by replacing the distributor board, a process that takes minutes to complete. It is available in a variety of belt widths, ranging from 400 to 1200mm.

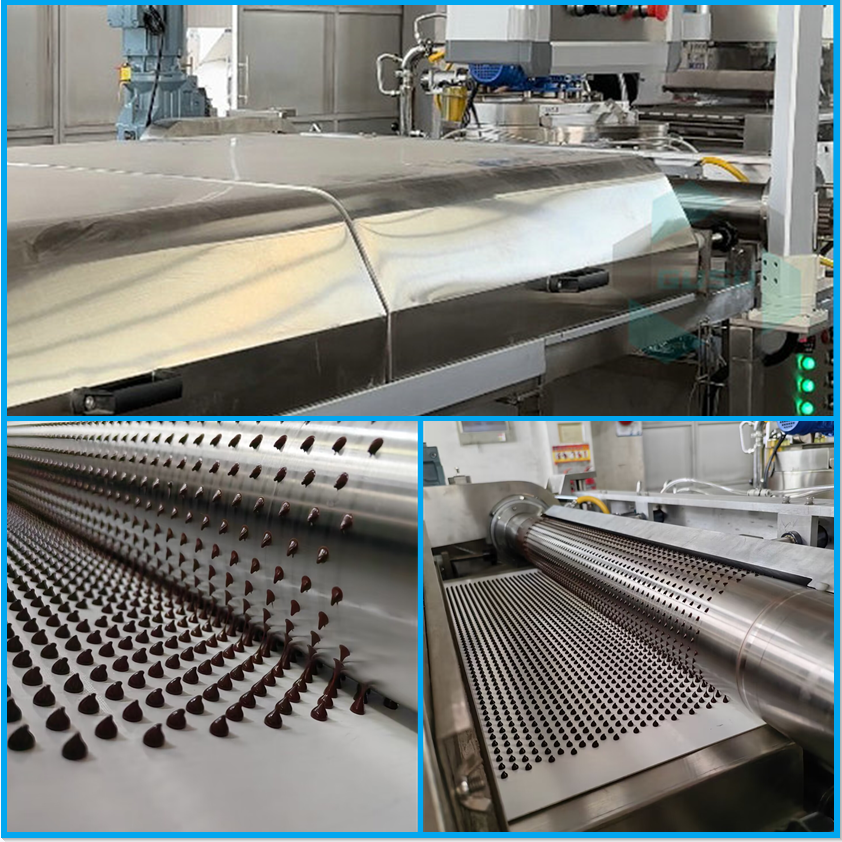

chocolate drops 详情2

Can produce:
