Pellt xylitol and stick shape chewing gum making machine

Short Description:

Adopt PLC control technique, high automaticity.

Adopt double extruding process, make the gum base organization even, and good taste.

Adopt vacuum powder absorber, improve working environment.

Adopt horizontal roller dust remover, assure the xylitol smooth and no burrs


Product Detail

Product Tags

Machine list with Technical data

Chewing Gum Making Machine

1.Pellet Shape Chewing Gum Machine

2.Strip Shape Chewing Gum Machine

Product Describe

Main parts Capacity(kg/h) Power(kw) Dimension(mm)
Blender 300 23.2 2500×860×1250
Extruder 300 15.2 1550×700×1300
Pastry rolling machine 300 4.1 2400×750×1200
Molding machine 300 1.5 1000×780×1150
Candy divider 300 2.25 2080×1250×1420

Chewing gum manufacturing machines mainly consists of :

A. chewing gum cores / slabs production

B. chewing gum coating machines;

C. chewing gum packing machines.

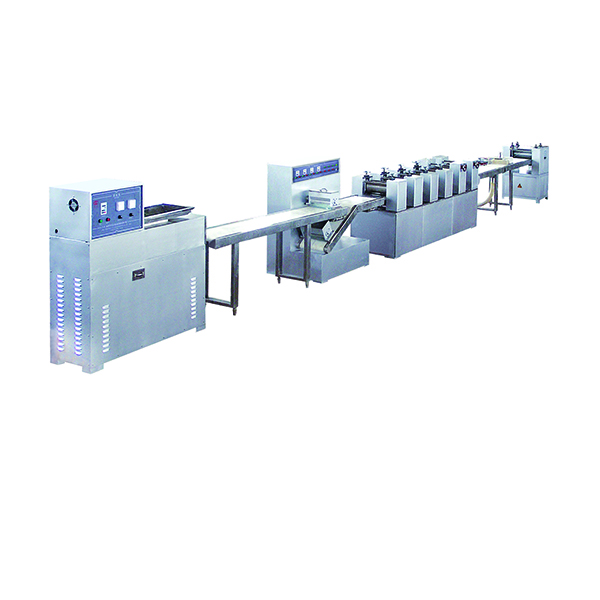

A. Chewing Gum Production Line for gum cores / slabs

1. Mixer:
Raw materials to be mixed into dough( before mixer, there is a gumbase heater).

2. Production line:
Dough to be put into extruder, goes all the way becoming thinner and thinner sheet until required thickness ,and then scoring gum cores & cutting at certain length.
Scored gum core slabs are put onto the wooden trays and sent into a seperate room for aging.
Alternatively, if you make stick gum, you need to change the gum core scoring & cutting machine into stick gum slab scoring & cutting machine; or in other words, both Coating gum & Stick gum can share the same production line.

Capacity : 100kg / h; 200kg/ h; 300kg/ h ; 400kg/ h.

3. Aging room:
Air conditioner and de-moisture machine are needed in this room in order to reach the below condition:
Temperature: 18-20℃
Moisture:50- 55%

4. Scored gum core separator:
After aging, the scored gum slabs are sent into the Separator to become single and independent gum core .

B. Chewing Gum Coating Machines:

This process is to coat gum cores and then polish.

To make quality gum, especially sugar free gum, while coating, the wind into each coating pans must be strictly controlled at certain temperature , moisture and enough wind amount.

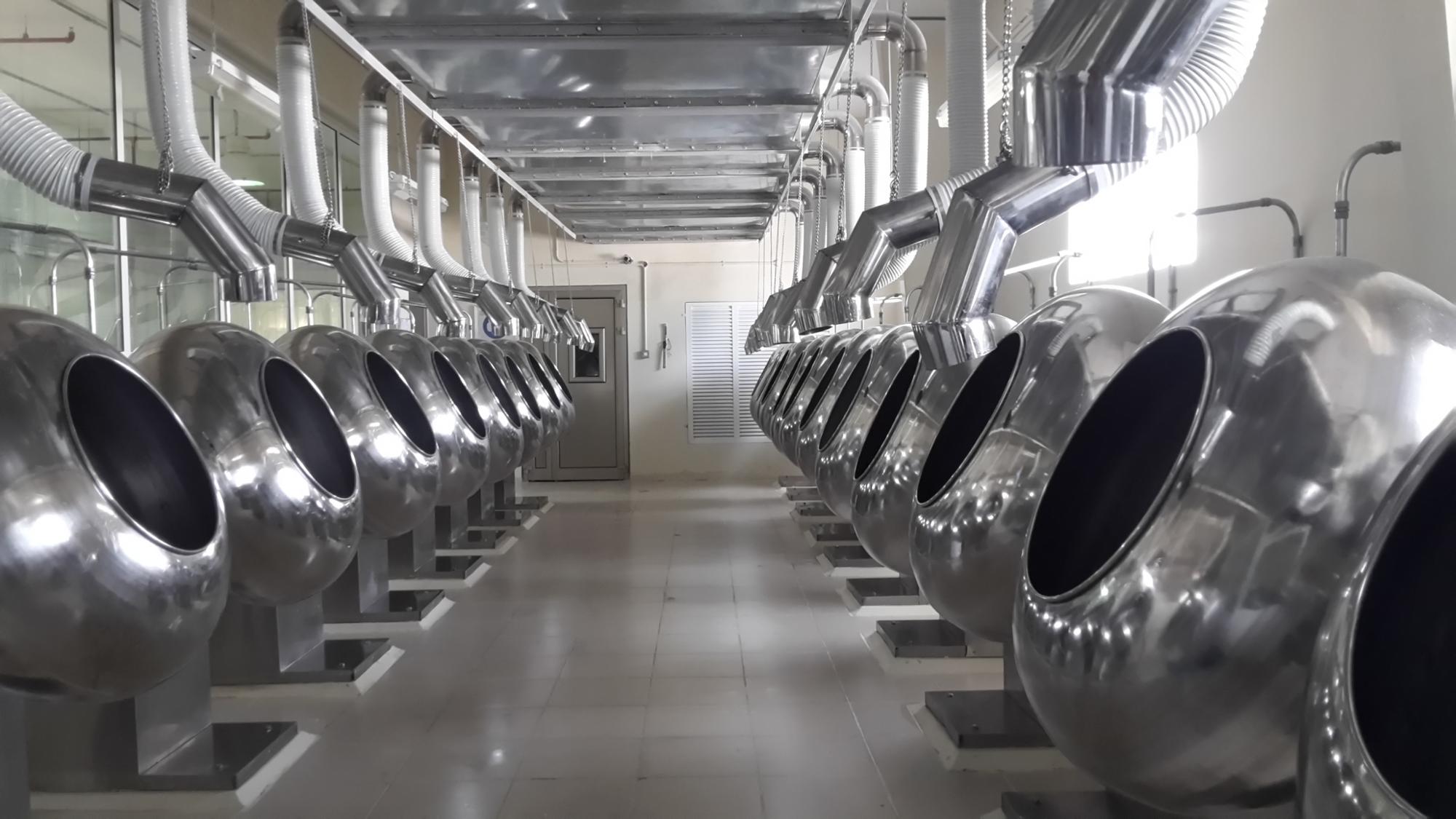

Advantages of our gum coating machines:

1) Perfect coating quality , making your gum good appearance & good quality ;

2) Coating time shortened , making your production more efficient;

3) Gum coating shell thickness can be easily controlled ;

4) Making your gum longer shelf life.

As an option, our custom made air con can be equipped with heat recycling system, which can save 90% of energy compared with current standard design.

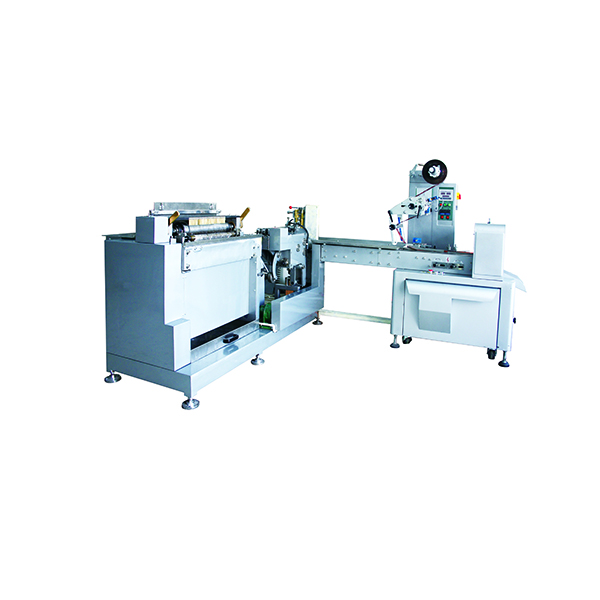

C. Chewing Gum Packing Machines:

This process is to coat gum cores and then polish.

To make quality gum, especially sugar free gum, while coating, the wind into each coating pans must be strictly controlled at certain temperature , moisture and enough wind amount.

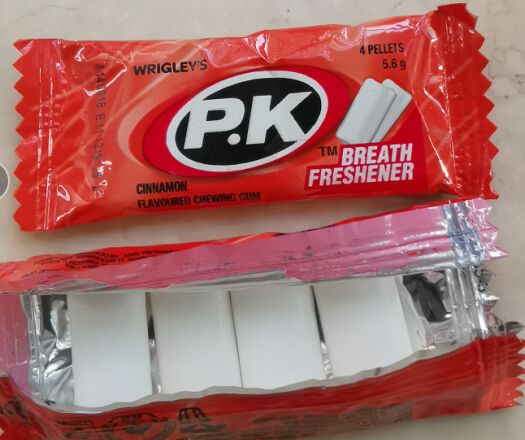

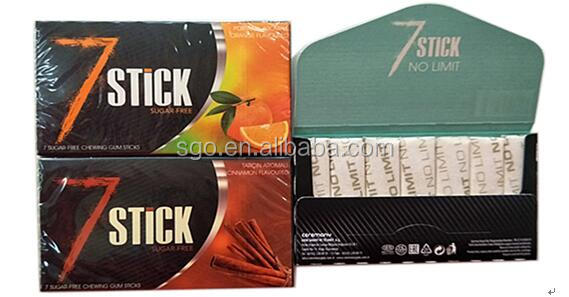

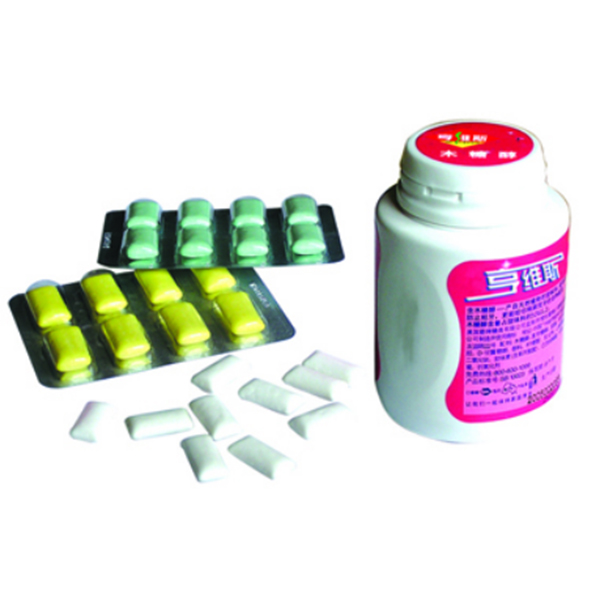

Packing samples

2) Coating chewing gum packing machine

a) bottle pack; blister , stick pack, 4pcs ;

b) blister -carton pack;

c) 4pcs on edge wrap;

d) 10pcs in a stick pack like orbit gum;

e) 25pcs in a bag pack;

f) 2 -4 pces in a pillow pack

g) multi pieces in a carton , etc

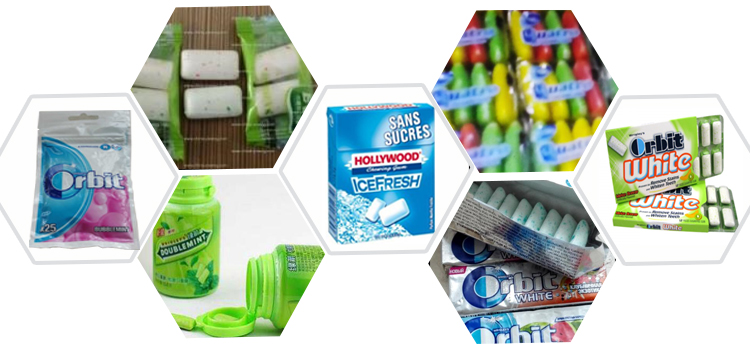

Packing samples:

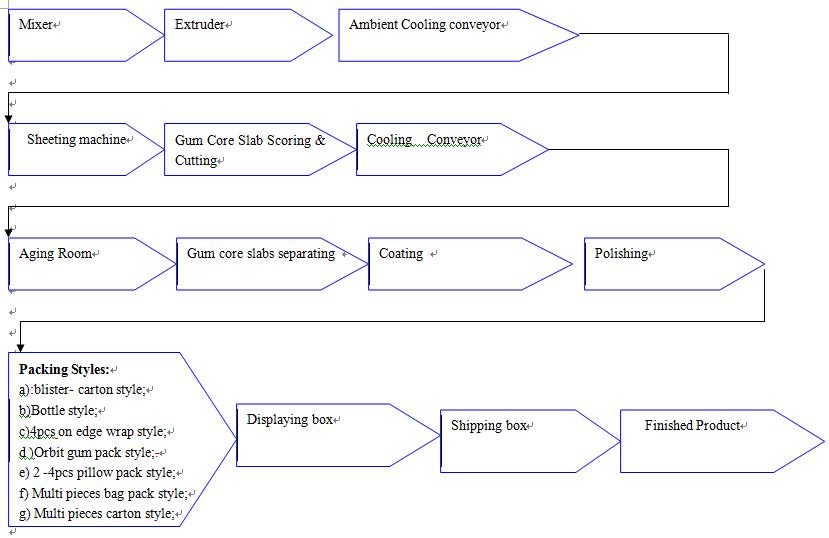

Coating chewing gum process flow chart:

Coating chewing gum process flow chart:

We are specialized in chewing gum machines for coating chewing gum & stick chewing gum;

Different shapes( bazooka, fusen, ball , rolled) of bubble gum machines are also available.

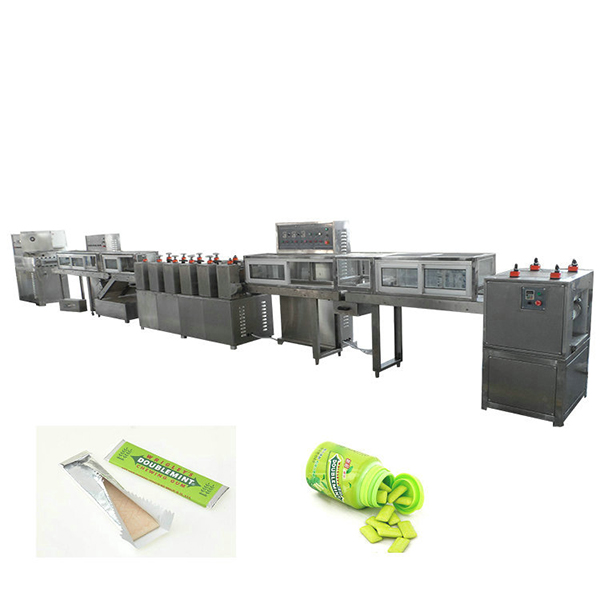

Product pictures
