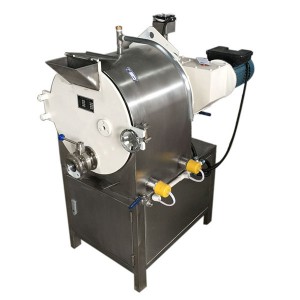

Small Chocolate refiner and conche/ chocolate conching machine/ chocolate grinding machine for sale

Short Description:

1.Chocolate conche machine is used in fine grinding of chocolate mass, it is the main equipment in chocolate production line.

2.Capacity range: smaller capacity about 20-40kg/batch, bigger capacity may from 500-3000kg/batch.

3.Can be connected between chocolate melting machine and ball milling machine.

4.Provide free factory layout drawings.

5.Provide engineers with installation services abroad, and 24 hours online instruction.

6.Lifetime warranty service, providing free accessories (non human damage within one year).


Product Detail

Product Tags

Chocolate conche is used in fine grinding of chocolate mass, it is the main equipment in chocolate production line.

The outside material is full stainless steel. the whole machine is designed with double jacketed which allow cool water circulate, prevent the high temperature burned the chocolate.

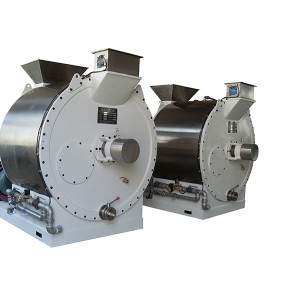

Industrial chocolate conche and lab scale conching machine

Material of machine: food grade SS304, double layers.

Electrics: Schneider or omron brand

Sticks and scrapers Material: 65#Mn steel after heat treatment with high strength, hardness and good abrasion resistence. Life is at least 3 yeasrs with normal use.

With auto-feeding cooling water, two temperature sensor.

The fine grinding time is 14~20 hours for 500-3000 litre chocolate, the average granularity can achieve 20μm to 25μm.

This machine has many merits such as tight structure, easy operation, convenient maintenance, few one-off investment, and so on.

Spare parts: 1pcs electrical heatings, some pcs linears, 1pcs scrapers, about 1 meter packing.

Suitable especially for the technical request of medium chocolate and candy factory.

Technical parameters:

Model



Technical Parameters

JMJ40

JMJ500A

JMJ1000A

JMJ2000C

JMJ3000C

Capacity (L)

40

500

1000

2000

3000

Fineness (um)

20-25

20-25

20-25

20-25

20-25

Duration (h)

7-9

12-18

14-20

18-22

18-22

Main Power (kW)

2.2

15

22

37

55

Heating Power (kW)

2

7.5

7.5

9

9
