Depositing and die forming type hard candy making machine

Short Description:

1.Two Production Way: Hard candy depositing line and hard candy die forming line

2.Capacity range: 20kg/h-800kg/h

3.We offer the whole production line from cooking to packing machine and good recipe

4.Engineer installation service is available 5.All machine technology and material quality is coming Europe

Send email to us

Product Detail

Product Tags

Hard Candy Making Machine

1.Hard candy depositing line

2.Hard candy die forming line

Machine list with Technical data

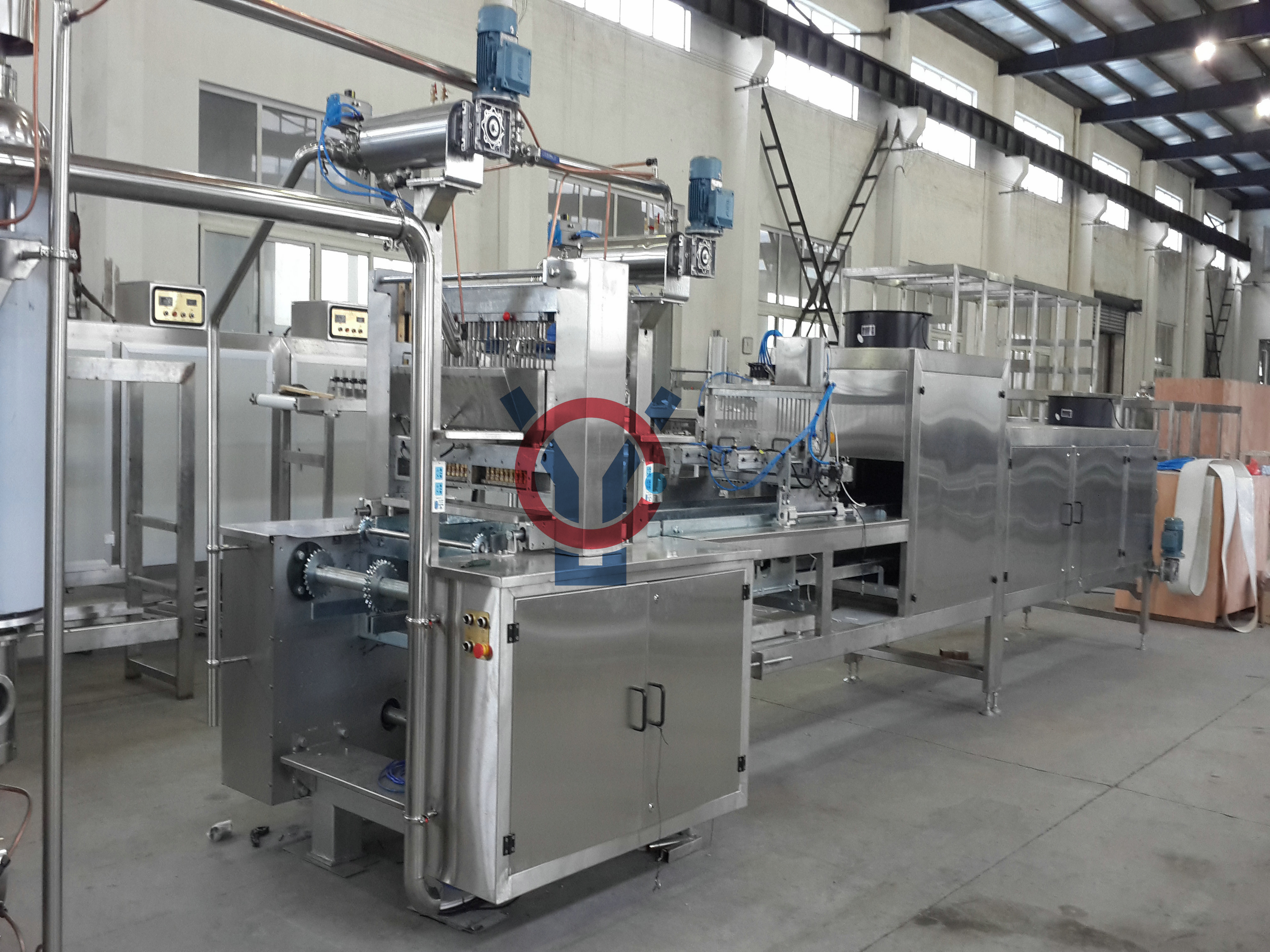

Full Automatic Hard Candy Depositing Line (Servo System)

Hard candy die forming line

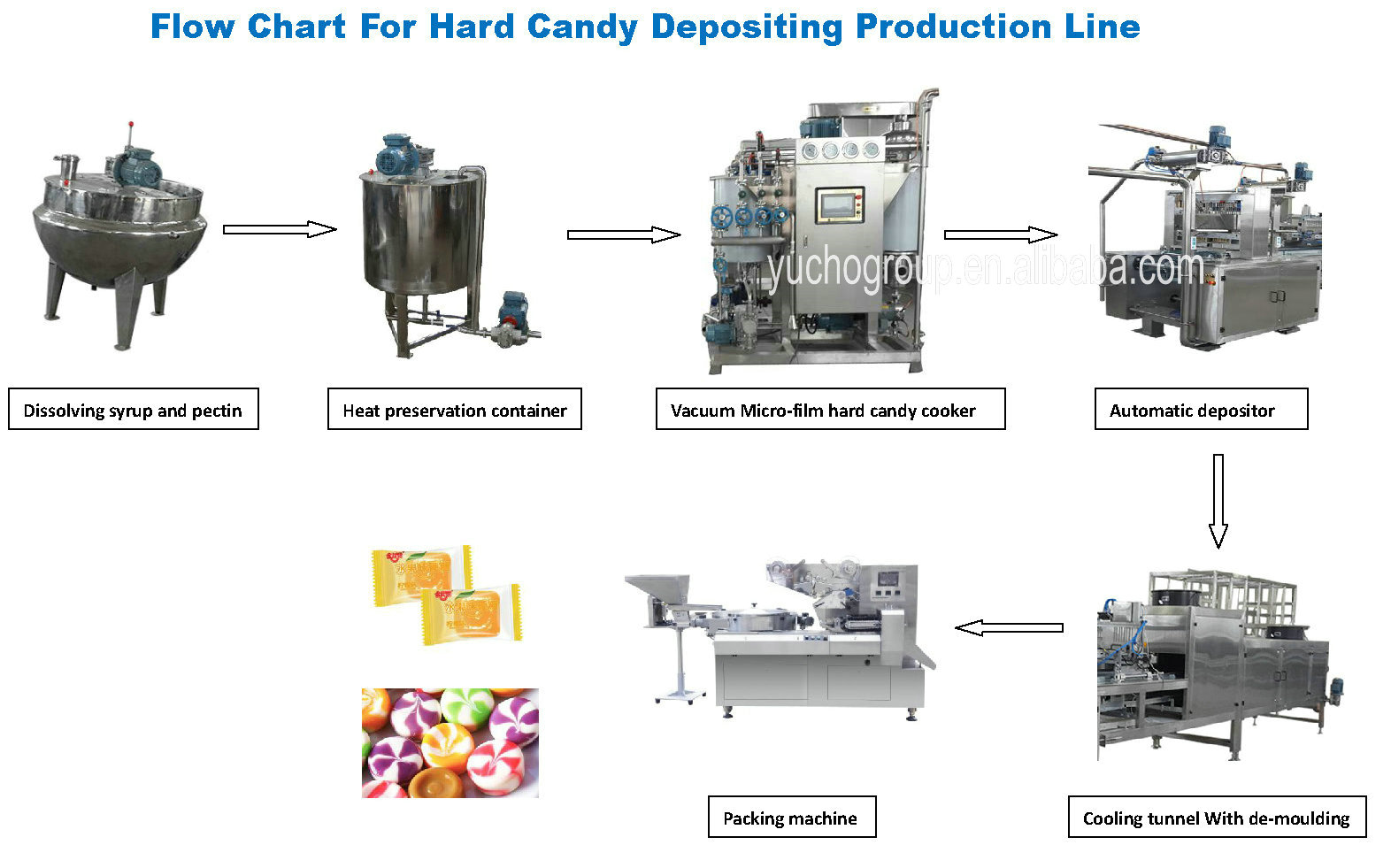

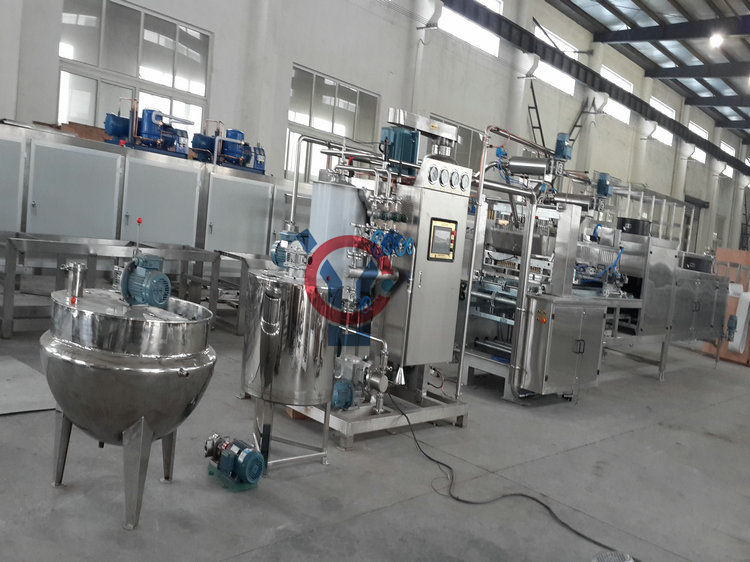

1. Hard candy depositing line Characteristics:

Sugar and all other materials are automatic weighed, transferred and mixed through adjust touch screen. Various kinds of recipes can be programmed in the PLC and applied easily and freely when required.

PLC, touch screen and servo driven system are imported brand, more reliable and stable performance and durable use-life.

Depositing volume (candy weight) can be changed easily through setting data on touch screen. More accurate depositing

Simple and compact machine structure, menu style operation interface, convenient operation and maintenance, high efficiency, low-noise, stable performance and long life.

Technical Specifications

Model	YGD50-80	YGD150	YGD300	YGD450	YGD600
Capacity	15-80kg/hr	150kg/hr	300kg/hr	450kg/hr	600kg/hr
Candy Weight	as per the candy size
Depositing Speed	20-50n/min	55 ～65n/min	55 ～65n/min	55 ～65n/min	55 ～65n/min
Steam Requirement		250kg/h, 0.5～0.8Mpa	300kg/h, 0.5～0.8Mpa	400kg/h, 0.5～0.8Mpa	500kg/h, 0.5～0.8Mpa
Compressed air requirement		0.2m³/min,0.4～0.6Mpa	0.2m³/min,0.4～0.6Mpa	0.25m³/min,0.4～0.6Mpa	0.3m³/min,0.4～0.6Mpa
Working Condition		/Temperature：20～25℃；n/Humidity：55%
Total power	6kw	18Kw/380V	27Kw/380V	34Kw/380V	38Kw/380V
Total Length	1meter	14m	14m	14m	14m
Gross Weight	300kg	3500kg	4000kg	4500kg	5000kg

Hard candy depositing line Characteristics (1)

Hard candy depositing line Characteristics (2)

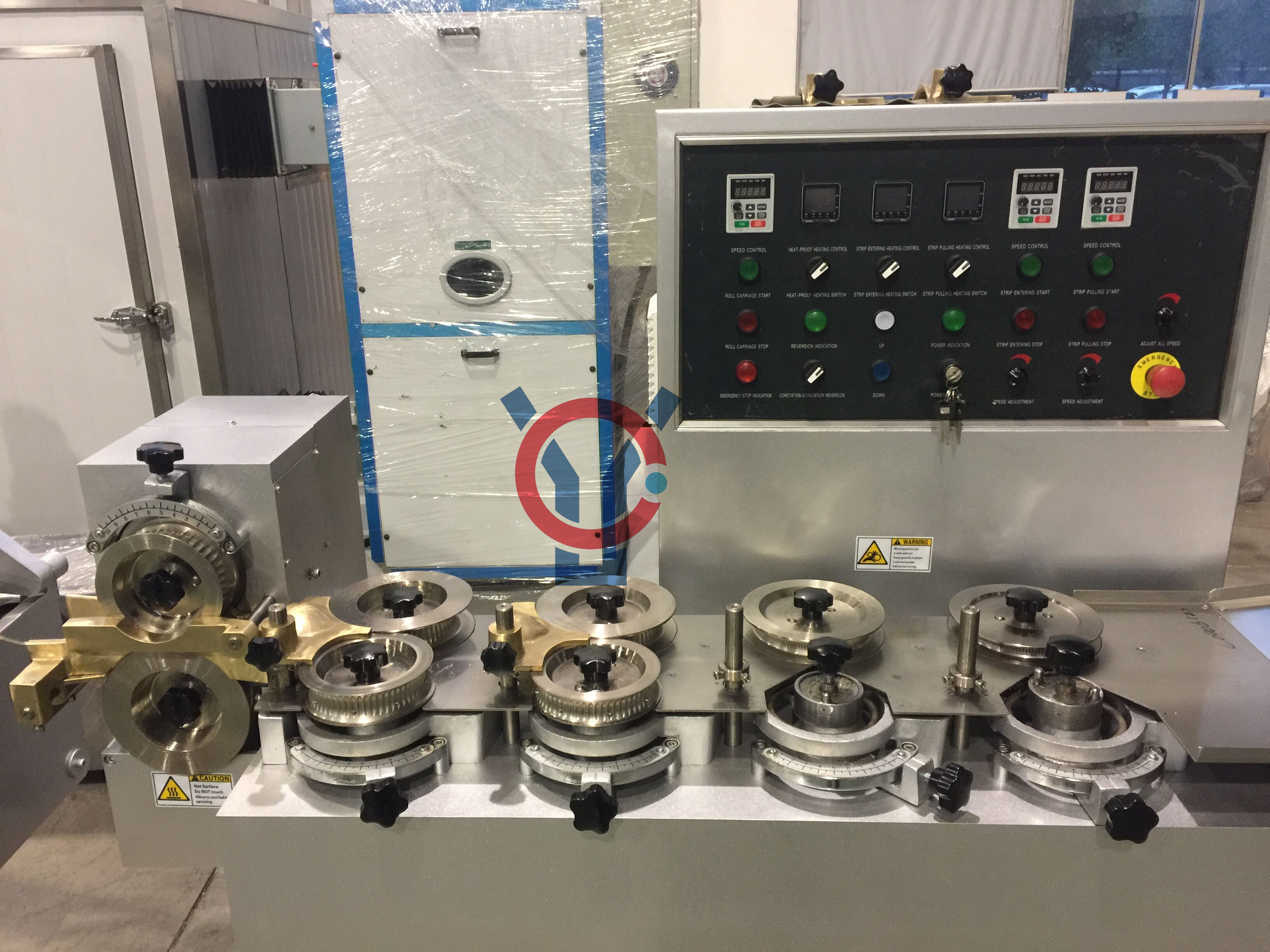

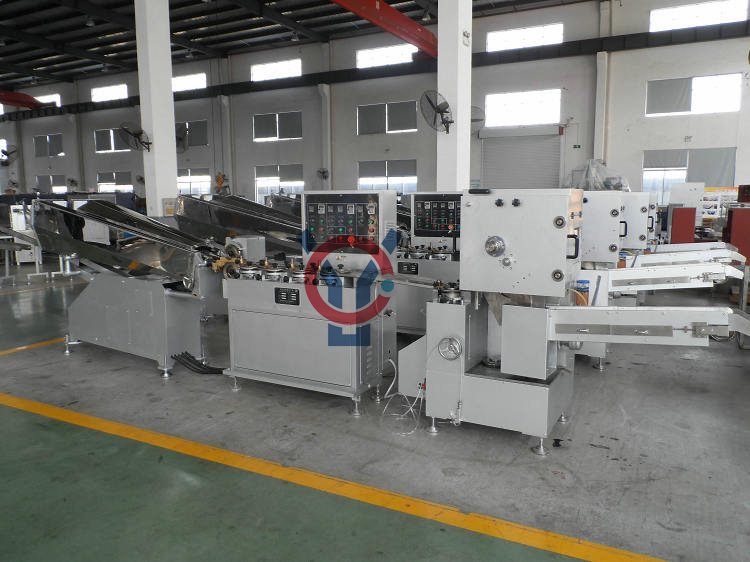

2. Hard candy die forming line Characteristics:

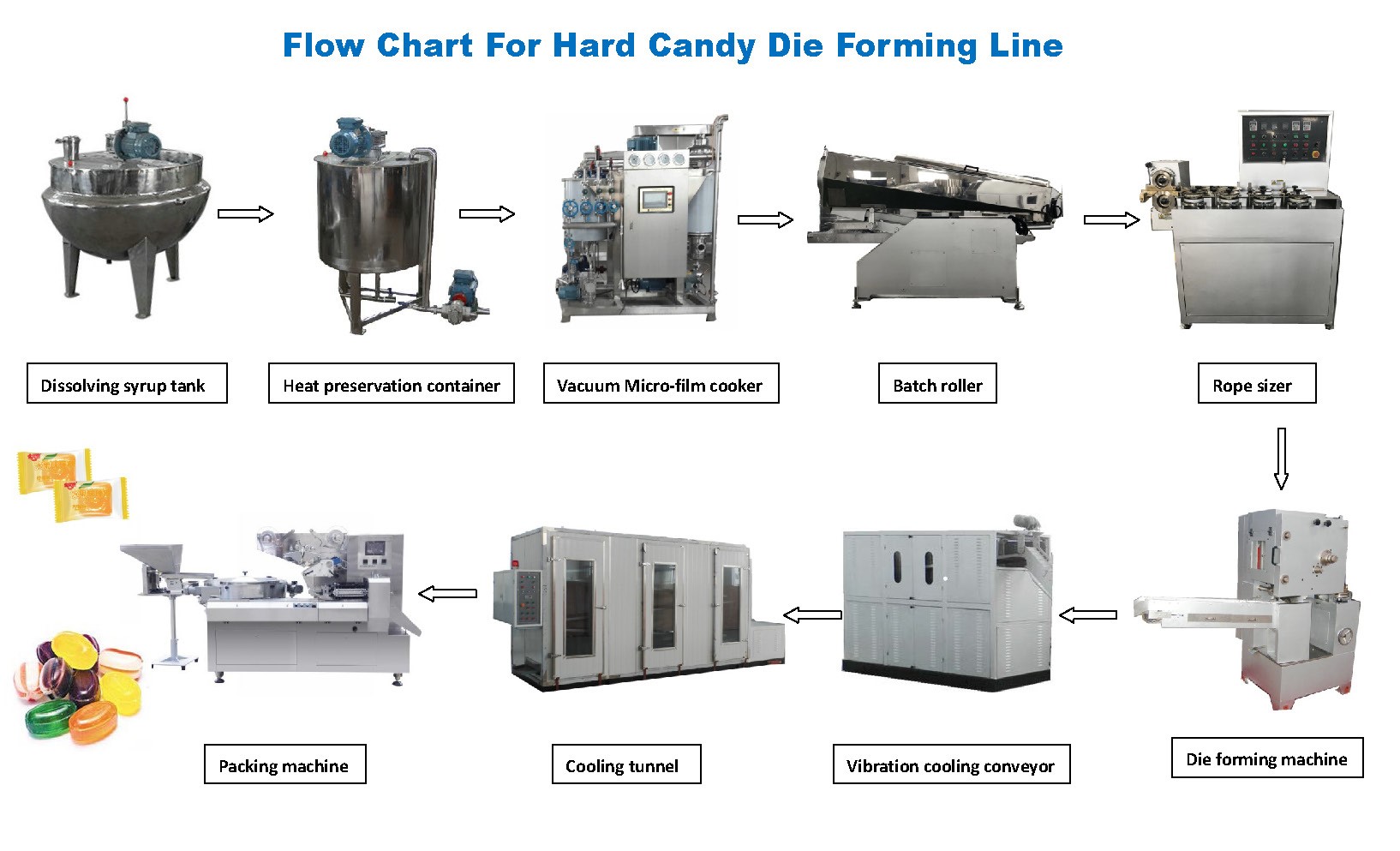

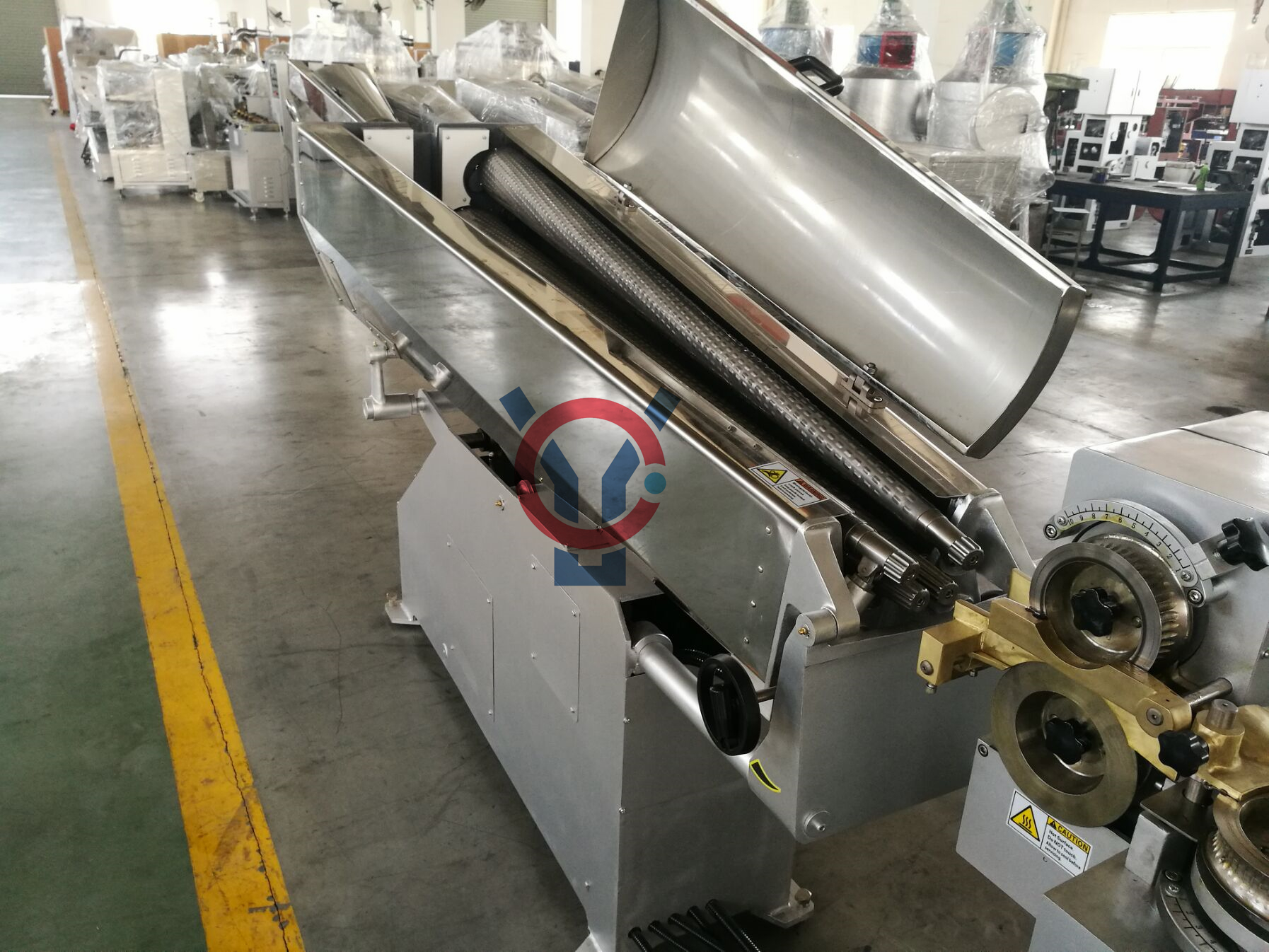

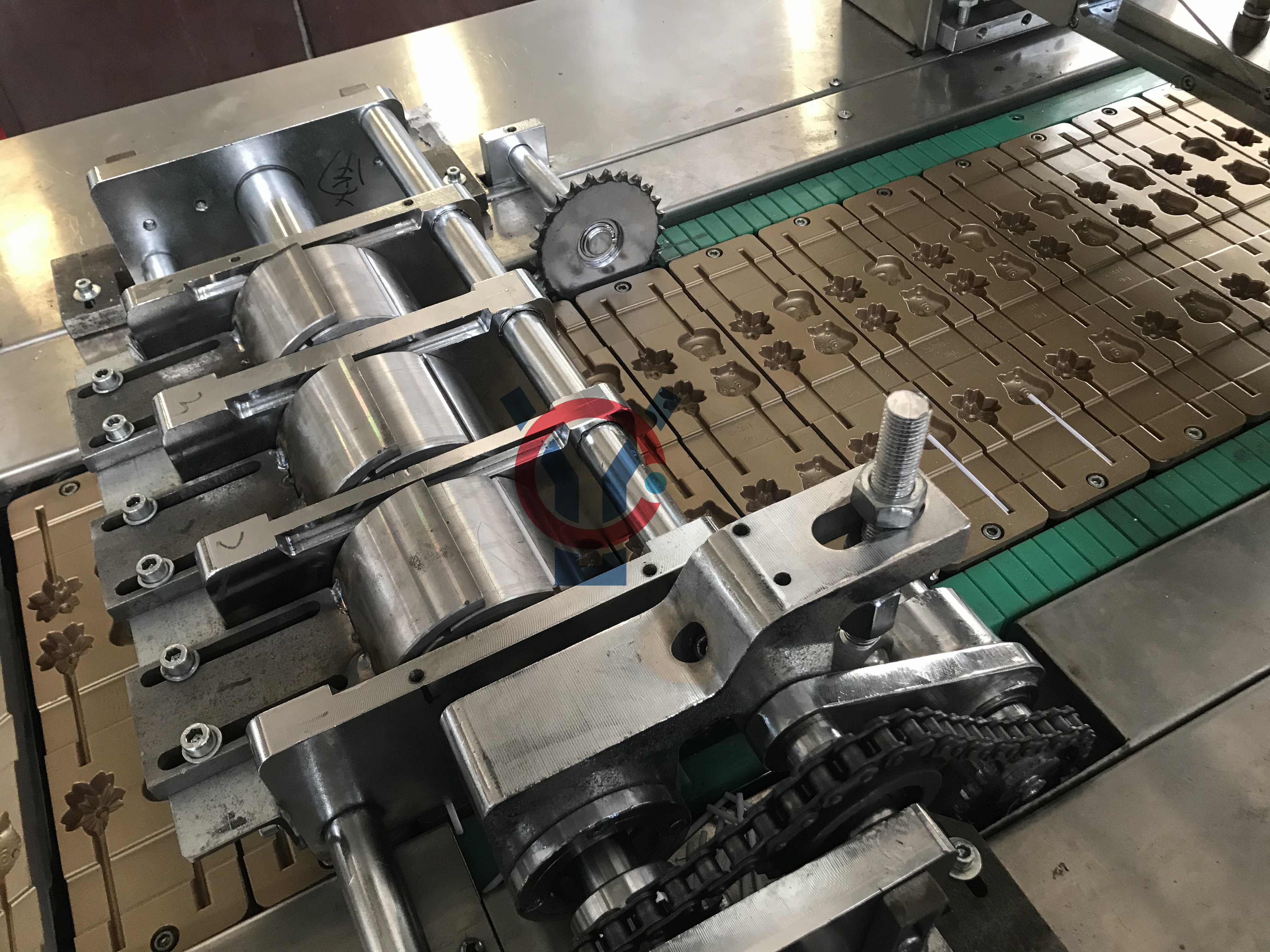

Hard candy die forming produciton line is a high-powered candy die-forming equipment. It can consist of the centre filling machine, rope sizer, liner, former, cooling tunnel. These machine conbined by machine, electricity and air, can controlling centre filling, lining, former, designing reasonable, with high automatic it is ideal candy forming equipment

It is suitable for producing irregular-shaped lollipops, such as: oblate, oval, big foot and cartoon irregular-shaped lollipops (shapes varying according to customer requirements).

Production capacity	80-600kg/h From different Model forming machine
Forming speed	1000-2500pcs/min
Power consumption	12kw
size	10mX1.2mX1.6m
Weight of machine	5500kg
candy weight	7g
Cooling requirement	20-25°c 55%
