chocolate bean making machine

Short Description:

1.Chocolate Bean Making Machine is mainly used for cold rolling the pure chocolate paste into various shapes of chocolate beans, such as the spherical, the egg-shaped, the MM bean shaped chocolate beans

2.Capacity range of toffee making machine: 50kg/h-500kg/h

3.Provide cold rolling forming method,no need for specialized molds

4.Provide engineers with installation services abroad

5.Lifetime warranty service, providing free accessories (non human damage within one year)


Product Detail

Product Tags

QCJ Chocolate Bean Making Machine is mainly used for cold rolling the pure chocolate paste into various shapes of chocolate beans, such as the spherical, the egg-shaped, the MM bean shaped chocolate beans and so on. This machine is equipped with cold roller, cooling system, cooling tunnel, beam rim separation unit.

The chocolate syrup is feed from the thermal tank though pump to the mould, the mould is working under the refrigeration
situation, lowest temperature can be regulated to -28 ℃ to -30℃, it makes the liquid syrup in the mould become solid in a moment.
Then transferred to cooler of 5 ℃ to -8℃ though conveyor for further definite form.
The finalized shape enter the roller screen barrel for remove the burr of core and automatically discharged.

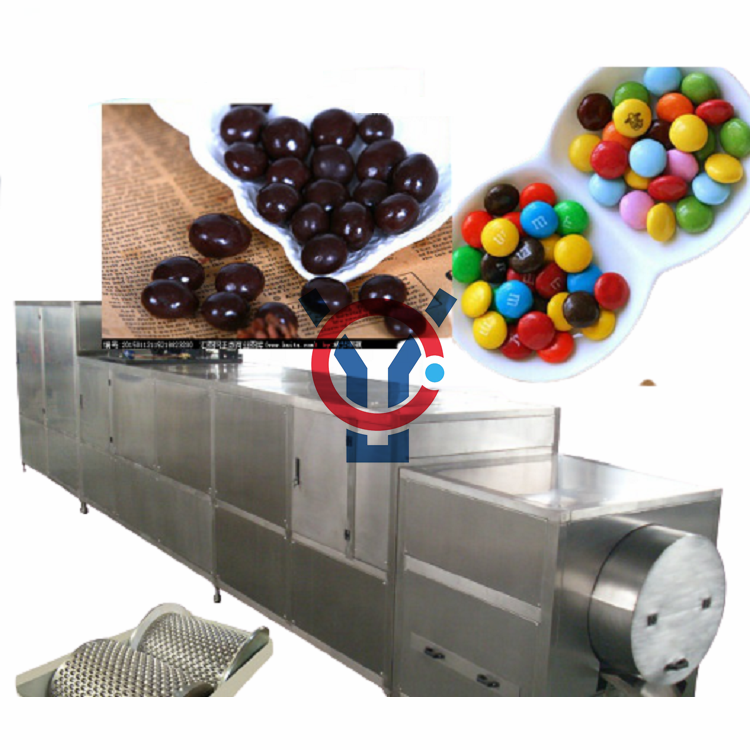

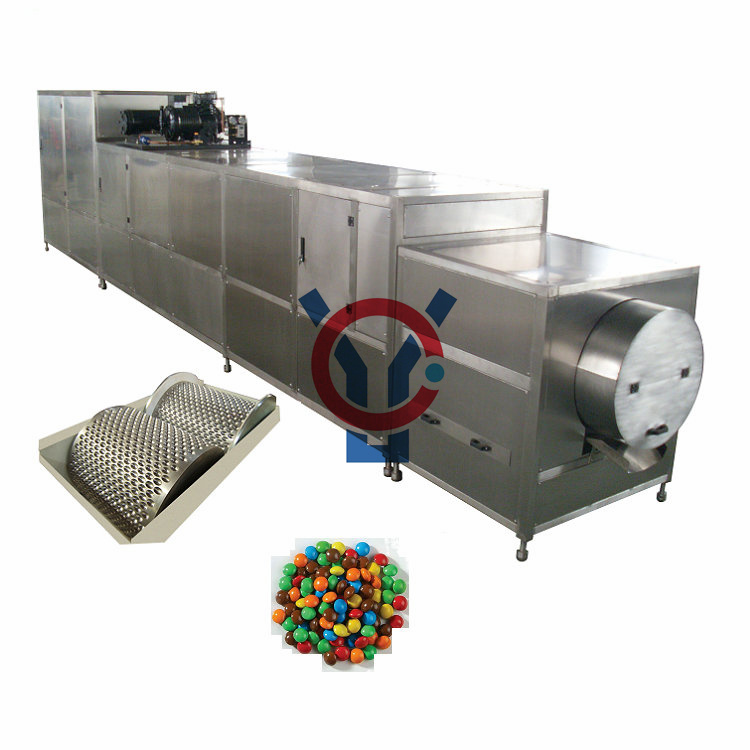

Chocolate bean making machine

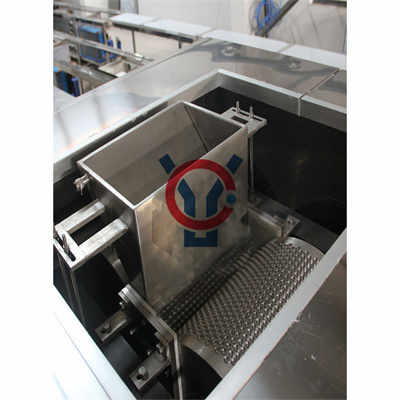

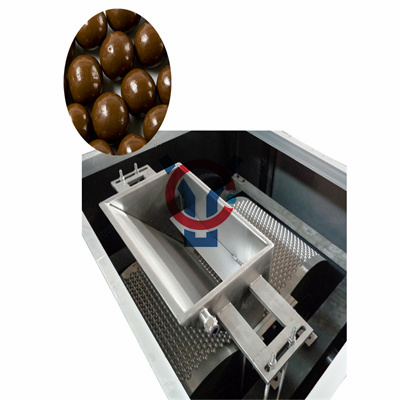

Chocolate bean making machine compose of chocolate cold roller with 10HP cooling compressor, three layers cooling tunnel with 8HP cooling compressor, chocolate rims separator unit and two drums of cooling glycol mix.

Customizable for small and large capacity. We know good recipe of coating material. Customer can change roller to produce many different size of chocolate bean

Material: SUS 304, food grade

Electrical components: Siemens or Omron Brand

Motor:  Siemens Brand

Touch screen: Siemens Brand

Belt:  Food grade PU belt, double layer

Guide you to produce chocolate bean through good and complicated technology

Control way: Full automatic line, operate machine through program in PLC

Technical data:

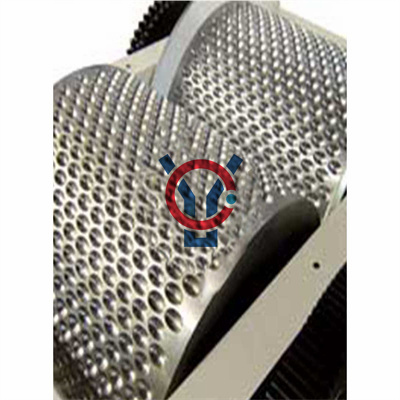

In standard model of machine, there is one set of cold roller included. For optional function, there is space for two sets of cold rollers in the machine. We can manufacture two sets of cold rollers for two sizes and shapes of chocolate bean in the same one machine based on extra cost of second set of cold roller.

Common two models for chocolate bean forming machine, one model is TQCJ400 with roller size of 400mmx414mm, and another model is TQCJ600 with roller size of 600mmx414mm.

                                     Model

QCJ400

QCJ600

Roller Length (mm)

400

600

Conveyor Belt Width (mm)

500

700

Roller Revolution Speed (round/min)

0.3-1.5

0.3-1.5

Layers of Cooling Tunnel

3

3

Production Capacity (kg/h)

100-150

150-225

Whole Machine Power (kW)

20

28

Outside Dimension (mm)

8620×1040×1850

8620×1250×1850

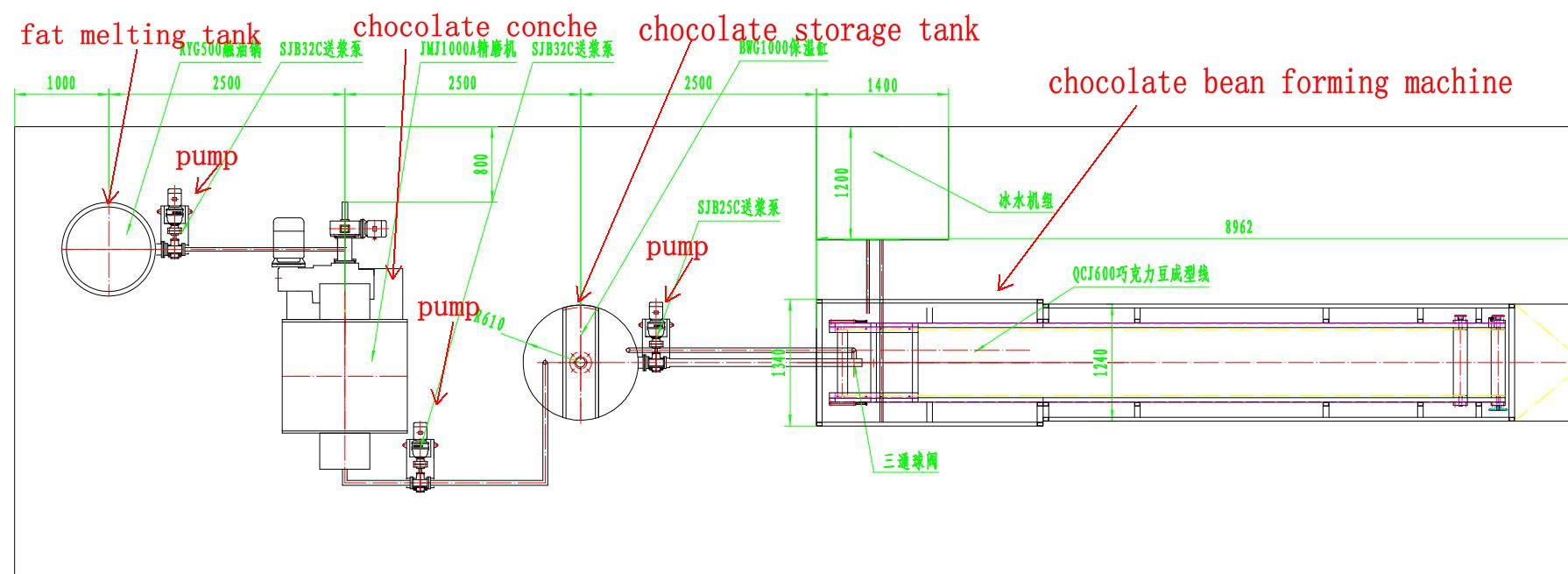

chocolate bean making machine (2)
